TRE 4×4 High Output 12V Air Compressor – Diff Lock & Tyre Inflation
138,00 €
The 12V compressor that drives TRE 4×4 air lockers. It supplies the air pressure the locker needs to engage, and doubles as a tyre inflator for re-inflating after airing down – so one unit covers both jobs rather than carrying a separate pump.
- Airflow under load: 61.6 L/min
- Airflow without load: 75.1 L/min
- Power supply: 12V
- Current draw under load: 22.9 A
In stock

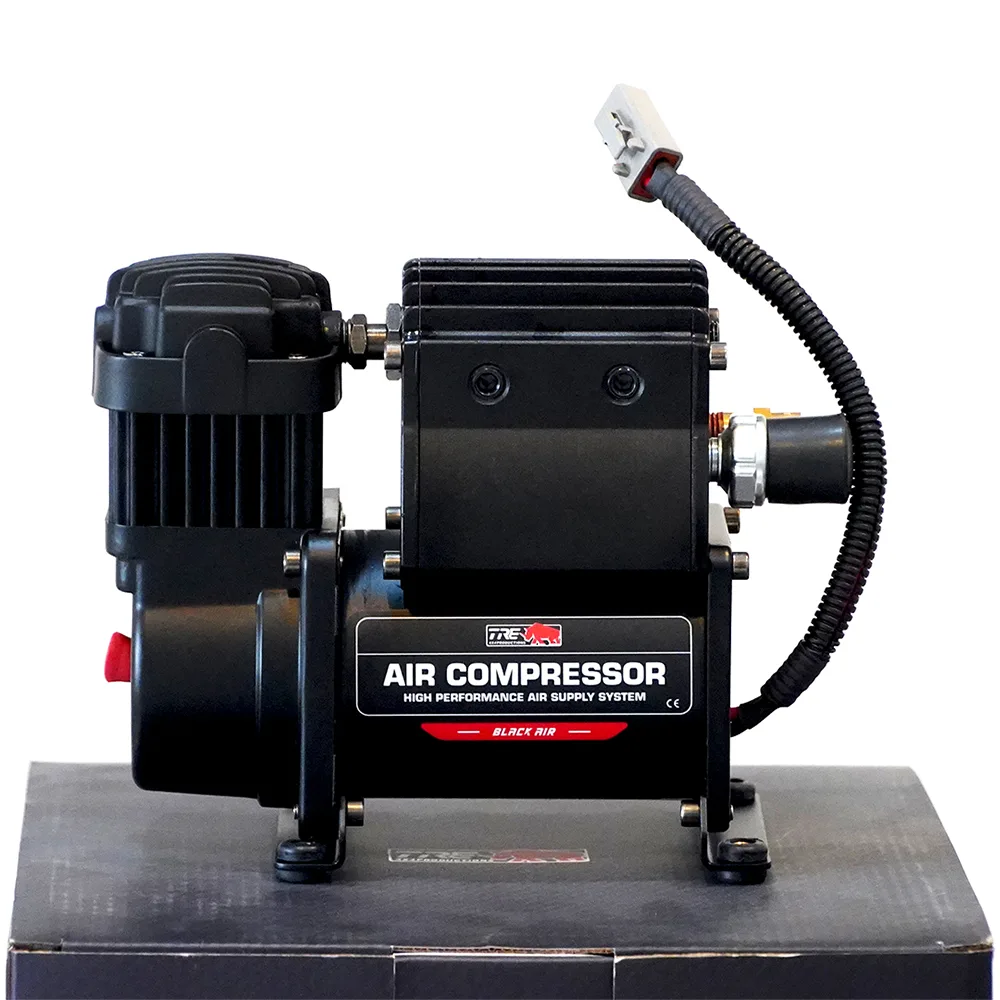

TRE 4×4 high output 12V air compressor
The 12V compressor that drives TRE 4×4 air lockers. It supplies the air pressure the locker needs to engage, and doubles as a tyre inflator for re-inflating after airing down – so one unit covers both jobs rather than carrying a separate pump.
Technical specification
- Airflow under load: 61.6 L/min
- Airflow without load: 75.1 L/min
- Power supply: 12V
- Current draw under load: 22.9 A
- Current draw without load: 13 A
- Dimensions: 142 x 190 x 96 mm
- Weight: 4.5 kg
- Motor protection: Thermal cut-out
What’s included
- Switch
- Relay
- Multi-position mount with single-pressure contact
- Pressure safety valve
- Wiring with fuse
Installation
Mount the compressor somewhere dry and reasonably cool, away from direct engine heat and road spray. Feed it directly from the battery through the supplied fused wiring – the current draw is too high for an accessory circuit. Thermal protection shuts the motor down if it overheats during a long inflation run.
| Weight | 5 kg |
|---|---|
| Dimensions | 19 × 14,2 × 9,6 cm |
| Brand | TRE 4×4 |
| Product Type | Air Compressor |
| Voltage | 12V |
| Airflow | 61.6 l/min |
