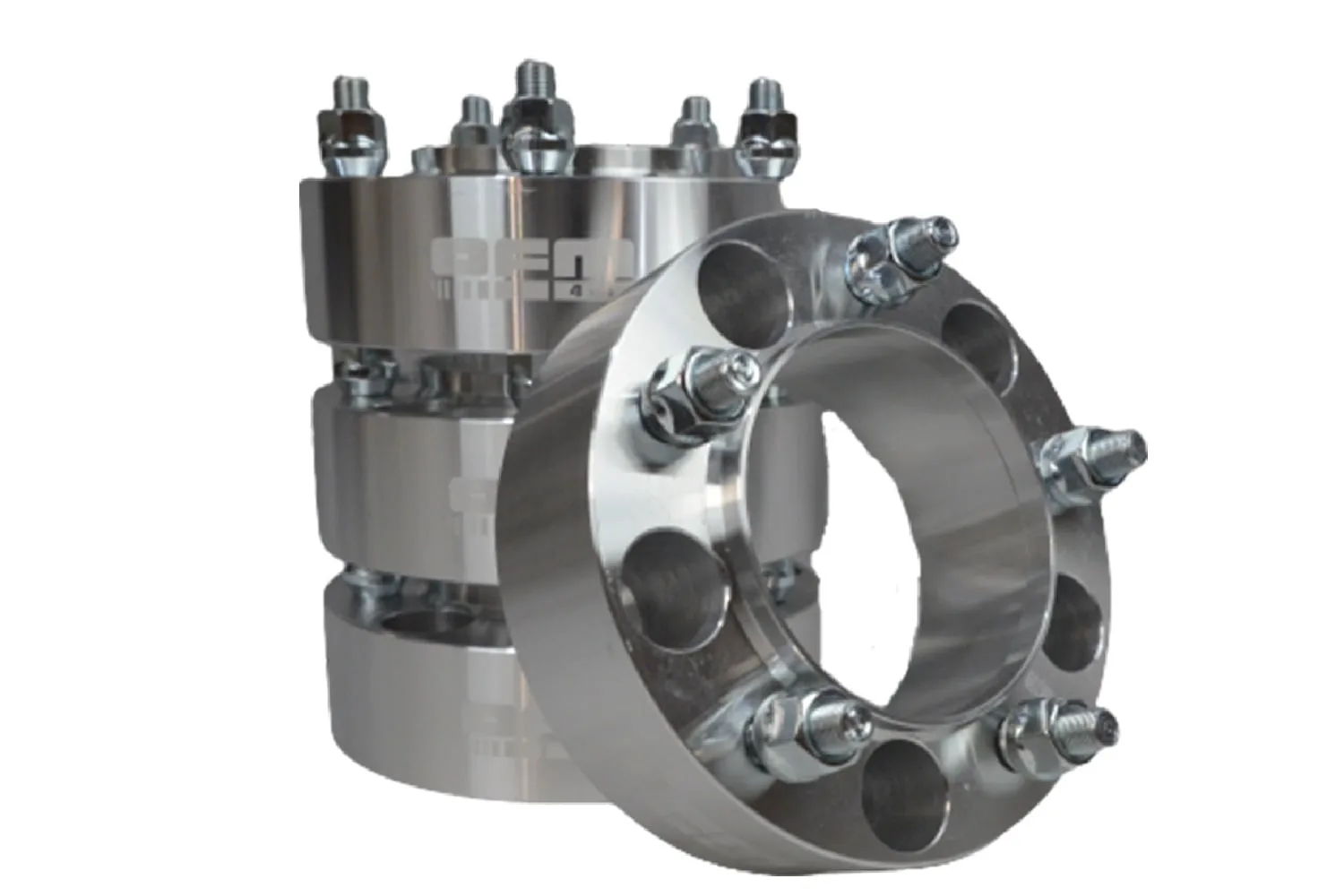

Wheel Spacer 30mm 5×139.7 M12x1.25 CB108 with Centring Ring – Suzuki
24,00 €
30mm duralumin wheel spacer, 5×139.7 bolt pattern, M12x1.25 thread and 108 mm centre bore, with centring ring. Widens the track and clears oversized off-road tyres.
- Thickness: 30mm
- PCD / CB: 5×139.7 / 108 mm
- Thread: M12x1.25
- Fits: Suzuki
Price is per single piece.
In stock
Size and packaging guidelines
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
Wheel spacer 30mm 5×139.7 M12x1.25
Machined from high-strength duralumin, this 30mm spacer moves the wheel outboard on a 5×139.7 bolt pattern. The result is a wider track, better stability on side slopes and room for larger tyres inside the arches.
Technical specification
- Thickness: 30mm
- Bolt pattern (PCD): 5×139.7 mm
- Thread: M12x1.25
- Centre bore (CB): 108 mm
- Centring ring: Yes – included
- Material: Duralumin (aluminium alloy)
- Model: OFM108
- Weight: 1.5 kg
- Supplied: Price is per single piece
Vehicle compatibility
- Suzuki Vitara, Grand Vitara 1, Suzuki Samurai, Suzuki Jimny, Suzuki SJ, Suzuki X90, Lada Niva (CB: 98.5 – requires centring ring)
What a wheel spacer does
Fitting a spacer moves the wheel outboard by its thickness. That widens the track, which improves lateral stability, and it creates clearance between the tyre sidewall and the suspension, steering arms and chassis – the usual limit when moving to oversized off-road tyres after a lift.
Fitting and safety
Spacers must be fitted to clean, flat hub faces and the nuts torqued to the vehicle manufacturer’s specification, then re-checked after the first 50-100 km. The centring ring locates the wheel on the hub so the load is carried by the hub face rather than the studs. Fitting by a specialist 4×4 workshop is strongly recommended.
The price shown is for one piece. Order the quantity you need – most builds take four.
| Weight | 1,5 kg |
|---|---|
| Dimensions | 14 × 14 × 3 cm |
| Brand | OFM4X4 |
| Vehicle Compatibility | Suzuki |
| Material | Aluminium |
| Spacer Model | OFM108 |
| Centring Ring | Yes |
| Spacer Thickness | 30 mm |
| Thread Size | M12 x 1.25 |
| Centre Bore (CB) | 108.1 mm |
| Bolt Pattern (PCD) | 5 x 139.7 |
