Wheel Spacer 50mm 6×139.7 M12x1.25 CB110 – Nissan, Ford
27,00 €
50mm duralumin wheel spacer, 6×139.7 bolt pattern, M12x1.25 thread and 110 mm centre bore. Widens the track and clears oversized off-road tyres.
- Thickness: 50mm
- PCD / CB: 6×139.7 / 110 mm
- Thread: M12x1.25
- Fits: Nissan, Ford
Price is per single piece.
In stock
Size and packaging guidelines
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |

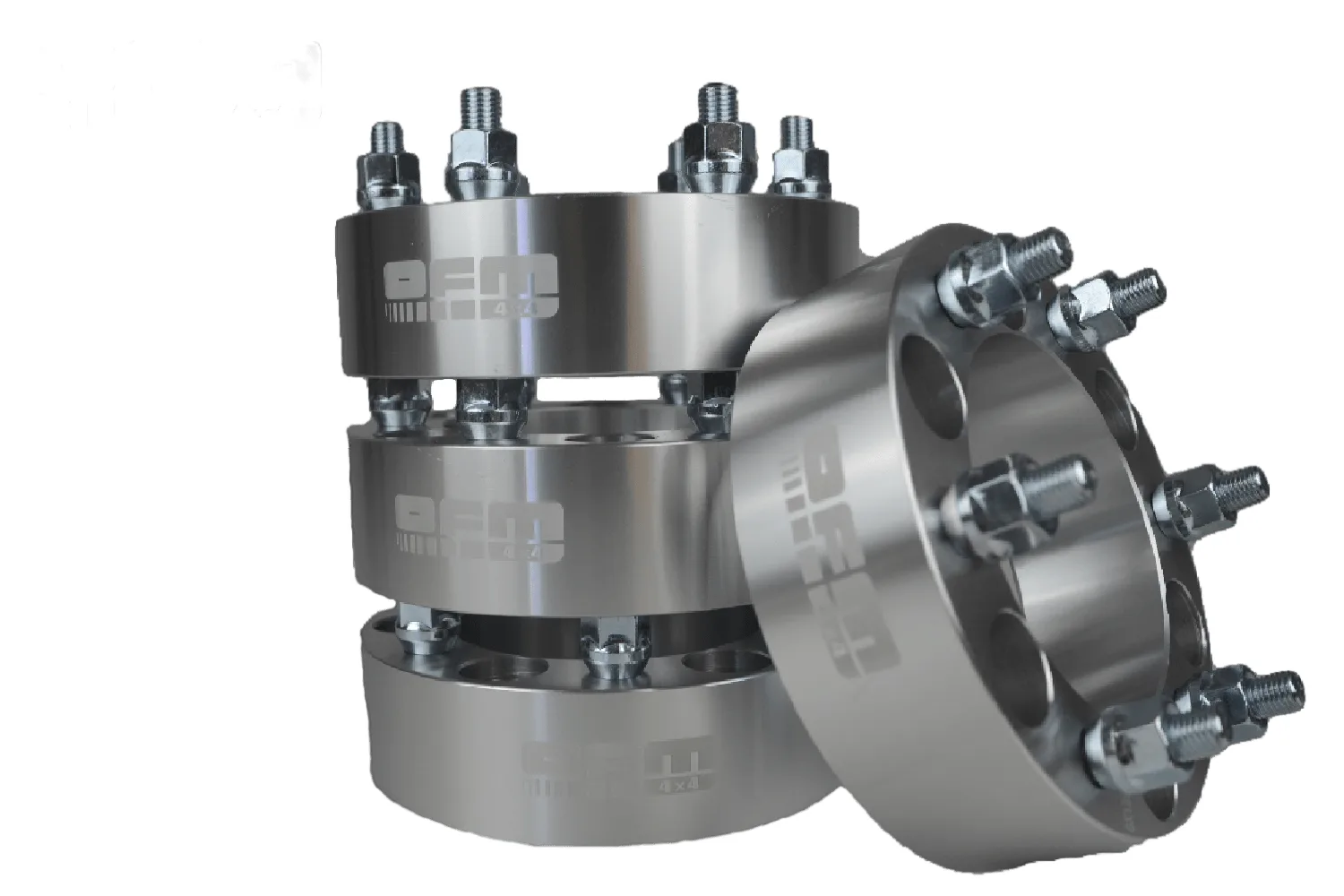

Wheel spacer 50mm 6×139.7 M12x1.25
A 50mm duralumin wheel spacer for 6×139.7 hubs. Widening the track restores the planted feel a vehicle loses after a suspension lift, and buys the clearance needed to run oversized off-road tyres without fouling the suspension.
Technical specification
- Thickness: 50mm
- Bolt pattern (PCD): 6×139.7 mm
- Thread: M12x1.25
- Centre bore (CB): 110 mm
- Centring ring: No
- Material: Duralumin (aluminium alloy)
- Model: OFM103
- Weight: 1.5 kg
- Supplied: Price is per single piece
Vehicle compatibility
- Nissan Patrol, Terrano, Navara D22
- Maverick (CB: 100) – requires a centring ring
- Navara D21 (CB: 100) – requires a centring ring
What a wheel spacer does
Fitting a spacer moves the wheel outboard by its thickness. That widens the track, which improves lateral stability, and it creates clearance between the tyre sidewall and the suspension, steering arms and chassis – the usual limit when moving to oversized off-road tyres after a lift.
Fitting and safety
Spacers must be fitted to clean, flat hub faces and the nuts torqued to the vehicle manufacturer’s specification, then re-checked after the first 50-100 km. This spacer is supplied without a centring ring – where your hub and wheel bores differ, fit the correct ring. Fitting by a specialist 4×4 workshop is strongly recommended.
The price shown is for one piece. Order the quantity you need – most builds take four.
| Weight | 1,5 kg |
|---|---|
| Dimensions | 14 × 14 × 5 cm |
| Brand | OFM4X4 |
| Vehicle Compatibility | Navara D22, Nissan |
| Material | Aluminium |
| Spacer Model | OFM103 |
| Centring Ring | No |
| Spacer Thickness | 50 mm |
| Thread Size | M12 x 1.25 |
| Centre Bore (CB) | 110 mm |
| Bolt Pattern (PCD) | 6 x 139.7 |
