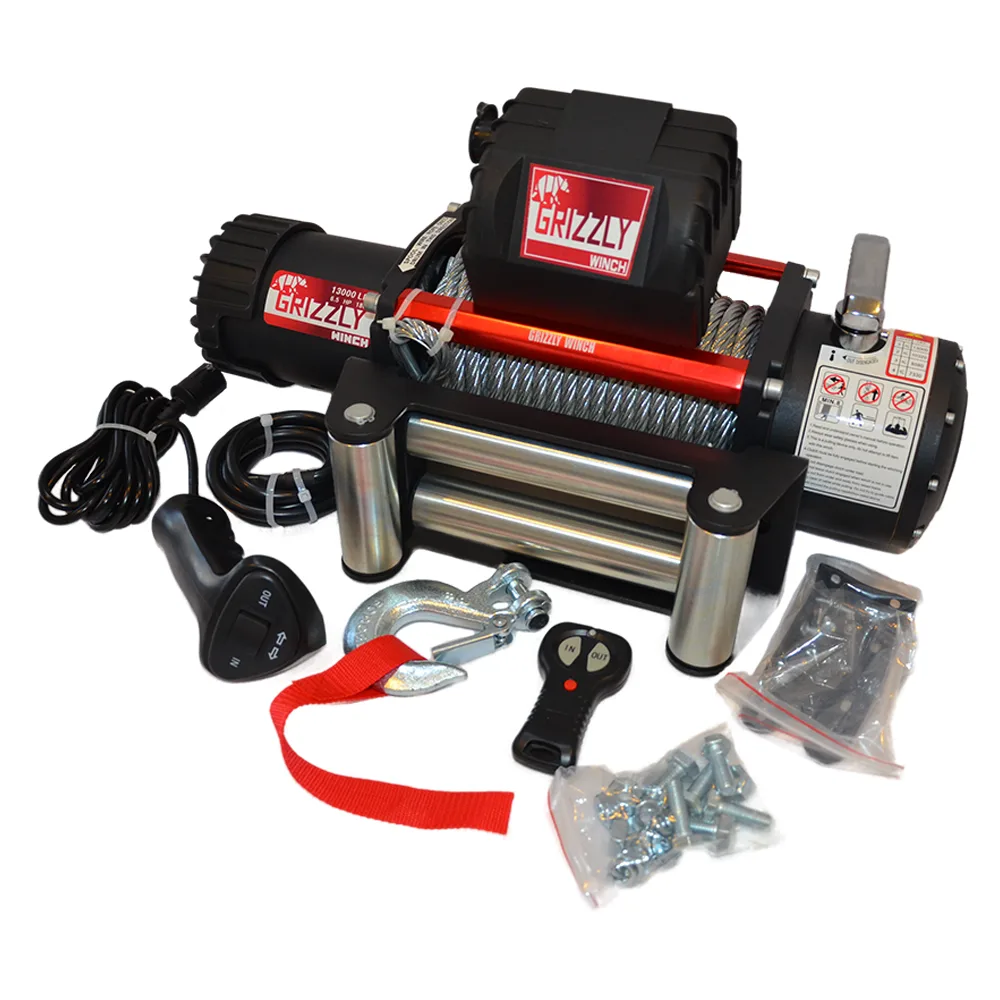

Grizzly Electric Winch 13,000 lbs 12V 180:1 – Steel Cable
290,00 €
Grizzly 13,000 lbs (5,897 kg) 12V electric recovery winch with a 180:1 planetary gearbox and steel cable.
- Capacity: 13,000 lbs (5,897 kg)
- Motor: 6.5 HP, 4.8 kW, 12V DC
- Cable: 25m x Ø 9.5 mm
- Gear ratio: 180:1
- Remote: Wired and Wireless
Out of stock
Grizzly 13,000 lbs 12V electric winch
A 13,000 lbs 12V recovery winch built for real off-road work. The 180:1 three-stage planetary gearbox delivers heavy pulling power from a compact housing, and the automatic brake holds the load whenever the motor stops.
Technical specification
- Pulling capacity: 13,000 lbs (5,897 kg)
- Steel cable: 25m x Ø 9.5 mm
- Motor: 6.5 HP, 4.8 kW, 12V DC
- Voltage: 12V
- Gearbox: 3-Stage Planetary Gear
- Gear ratio: 180:1
- Clutch: Manual Engage/Disengage
- Brake: Automatic
- Fairlead: Steel Rollers
- Remote control: Wired and Wireless
- Dimensions: 546 mm x 160 mm x 222 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 5,897 kg
- Ingress protection: IP68 – Fully protected against dust and water.
- Winch weight: 38 kg
- Warranty: 24 Months
Rope and fairlead
Galvanised steel cable is highly abrasion resistant and shrugs off dragging over rock and gravel. It stores significant energy under tension, so always lay a damper over the line during a pull and never step over a loaded cable. Wear gloves – used cable develops sharp broken strands.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 38 kg |
|---|---|
| Dimensions | 54,6 × 16 × 22,2 cm |
| Brand | Grizzly Winch |
| Line Type | Steel Cable |
| Voltage | 12V |
| Gear Ratio | 180:1 |
| Pulling Capacity | 13000 lbs (5897 kg) |
| Motor Power | 6.5 HP |
| Length | 25 m |
| Line Diameter | 9.5 mm |
