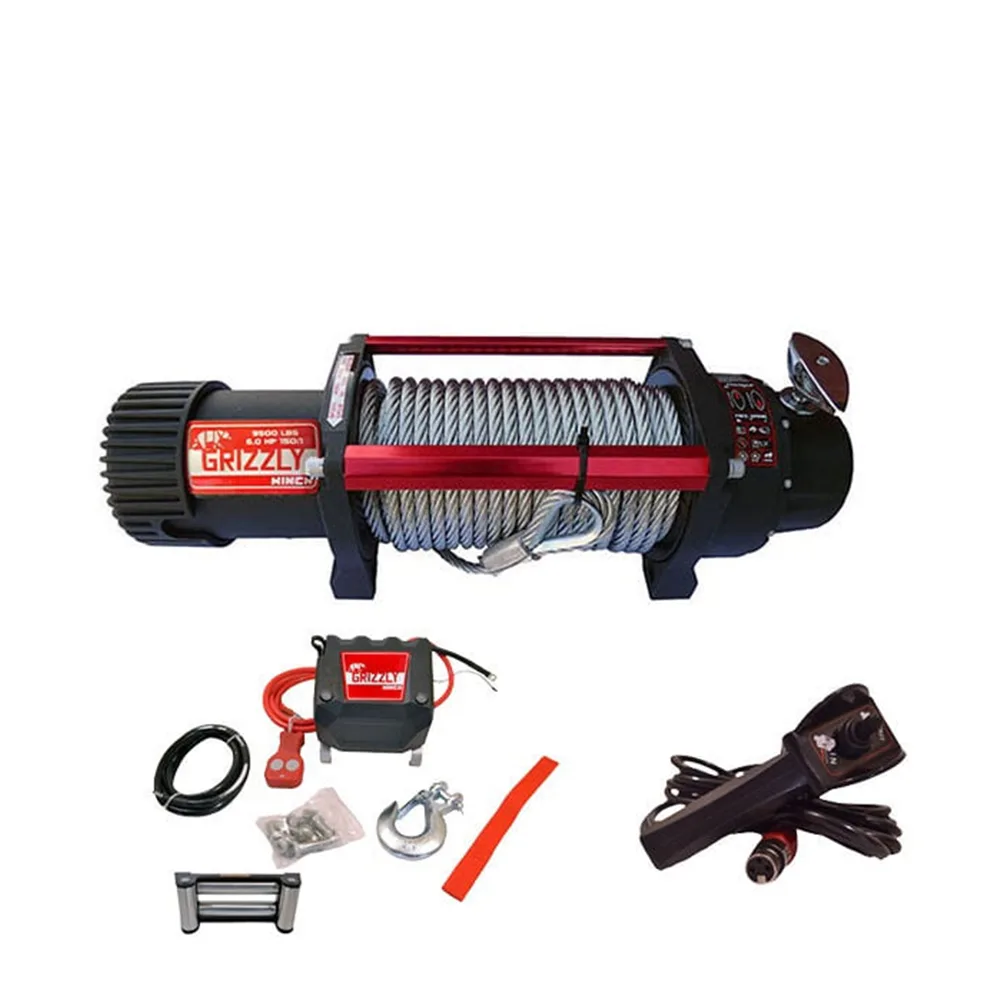

Grizzly Electric Winch 9,500 lbs 12V 150:1 – Steel Cable
325,00 €
Grizzly 9,500 lbs (4310 kg) 12V electric recovery winch with a 150:1 planetary gearbox and steel cable.
- Capacity: 9500 lbs (4310 kg)
- Motor: 6.0 HP (4.5 kW)
- Cable: 25 m x Ø 9.5 mm
- Gear ratio: 150:1
- Remote: Wired and wireless
In stock
Grizzly 9,500 lbs 12V electric winch
This 9,500 lbs 12V winch is sized for full-size 4x4s and heavily loaded pick-ups. It ships with galvanised steel cable and a roller fairlead for hard, abrasive recovery work.
Technical specification
- Pulling capacity: 9500 lbs (4310 kg)
- Steel cable: 25 m x Ø 9.5 mm
- Motor: 6.0 HP (4.5 kW)
- Voltage: 12V
- Gearbox: 3-stage planetary
- Gear ratio: 150:1
- Clutch: Manual engage/disengage
- Brake: Automatic
- Fairlead: Steel rollers
- Remote control: Wired and wireless
- Control box: Fixed position (central)
- Dimensions: 546 mm x 160 mm x 218 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 4310 kg
- Winch weight: 33 kg
Rope and fairlead
Galvanised steel cable is highly abrasion resistant and shrugs off dragging over rock and gravel. It stores significant energy under tension, so always lay a damper over the line during a pull and never step over a loaded cable. Wear gloves – used cable develops sharp broken strands.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 34 kg |
|---|---|
| Dimensions | 54,6 × 16 × 21,8 cm |
| Brand | Grizzly Winch |
| Line Type | Steel Cable |
| Voltage | 12V |
| Gear Ratio | 150:1 |
| Pulling Capacity | 9500 lbs (4310 kg) |
| Motor Power | 6 HP |
| Length | 25 m |
| Line Diameter | 9.5 mm |
Products that are in stock and listed on ofm4x4.com are delivered by express courier to the address you specify, to mainland addresses in the European Union countries available for selection at checkout. We do not currently deliver to islands or to countries outside the European Union.
Deliveries are currently made by DHL. The courier is chosen by the seller, who may change the courier delivering your order at any time.
The delivery cost is shown in the cart and at checkout once the delivery address has been confirmed. When your order is processed, we will confirm the delivery charge. If the courier or the charge has to be changed, we will tell you the new charge before dispatch; if you do not agree with it, you may cancel the order and receive a full refund.
In-stock products are normally delivered within 3–5 working days of order confirmation, depending on the destination country. You will receive a tracking number when your order is dispatched.
For products that are not in stock, the delivery time will be communicated by OFM4X4 staff when the order is processed.
Parcels are delivered during the courier's normal working hours, depending on the courier's route. We cannot guarantee a fixed delivery time.
The delivery time given when the order is confirmed is an estimate, and delays caused by the courier may occur.
We may delay or cancel a delivery if we are unable to fulfil the order for reasons beyond our control, caused either by a third party or by force majeure. In that case we will inform you and refund any amount already paid for products that cannot be delivered.
If we do not deliver the products within the delivery period communicated to you and you choose to cancel the order, we will refund all sums paid under the contract without undue delay, and in any case within 14 days of the date on which you informed us of your decision to terminate the contract.
We pack all products appropriately for transport.
The risk of loss of or damage to the products passes to you when you, or a third party indicated by you other than the carrier, take physical possession of the products.
Ownership of the products passes to you on delivery, provided the price has been paid.
If a parcel cannot be delivered for reasons attributable to the buyer (for example a wrong address, refusal of the parcel or failure to collect it), we reserve the right to charge the cost of the return transport and of any new delivery.
Products bought by consumers are covered by the 2-year legal guarantee of conformity. If a product is not in conformity, you are entitled to have it repaired or replaced free of charge or, in the cases provided by law, to a price reduction or a refund.
You may withdraw from your purchase without giving any reason within 14 calendar days of receiving the product. The direct cost of returning the product is borne by you. We refund all sums paid, including the cost of standard delivery, within 14 days of your notification; we may withhold the refund until we have received the product or proof that you have sent it.
Full details: Shipping, Warranty and Returns Policy. Questions? contact@ofm4x4.com or +40 730 333 666.
