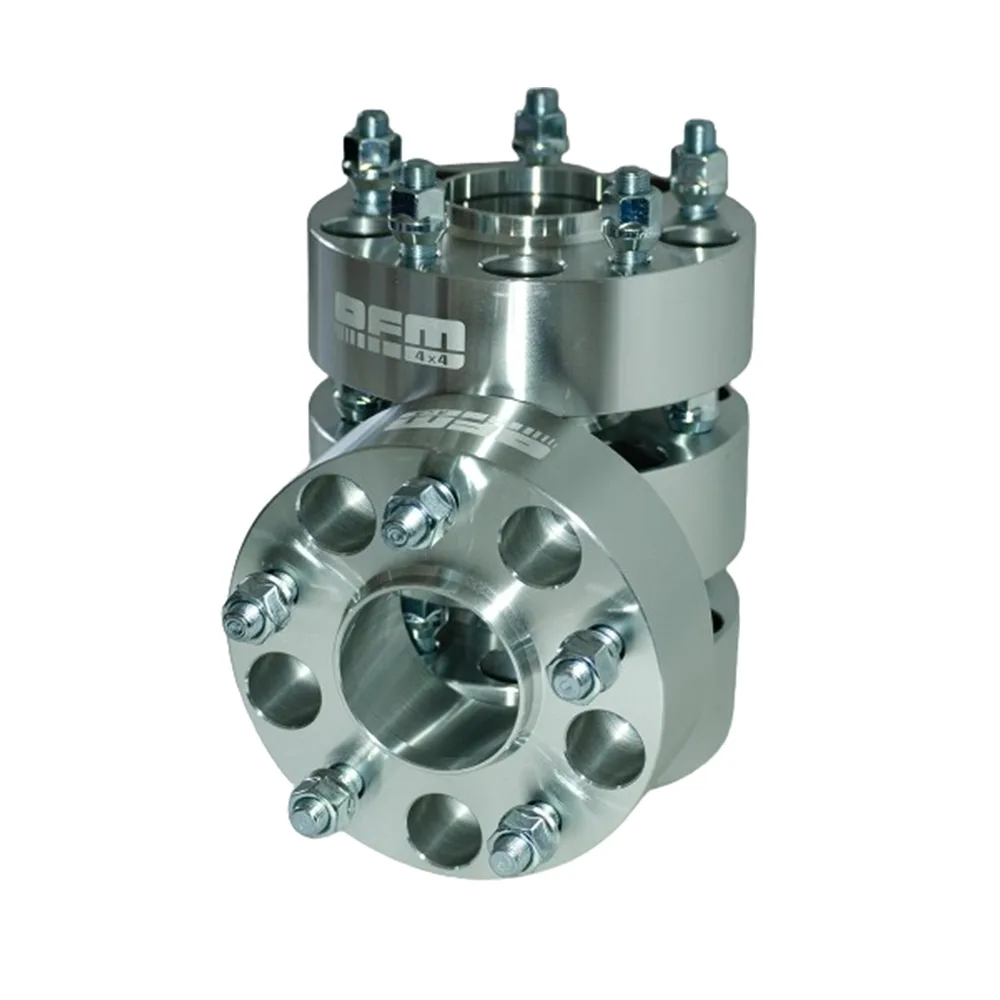

Wheel Spacer 50mm 5×127 M1/2 CB71.6 with Centring Ring – Jeep
27,00 €
50mm duralumin wheel spacer, 5×127 bolt pattern, M1/2 thread and 71.6 mm centre bore, with centring ring. Widens the track and clears oversized off-road tyres.
- Thickness: 50mm
- PCD / CB: 5×127 / 71.6 mm
- Thread: M1/2
- Fits: Jeep
Price is per single piece.
In stock
Size and packaging guidelines
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
Wheel spacer 50mm 5×127 M1/2
These 50mm wheel spacers push each wheel further out from the hub, widening the track for a more stable stance and clearing larger tyres, lifted suspension and bigger brake components. Machined from aircraft-grade duralumin to keep unsprung weight down.
Technical specification
- Thickness: 50mm
- Bolt pattern (PCD): 5×127 mm
- Thread: M1/2
- Centre bore (CB): 71.6 mm
- Centring ring: Yes – included
- Material: Duralumin (aluminium alloy)
- Model: OFM120
- Weight: 1.5 kg
- Supplied: Price is per single piece
Vehicle compatibility
- Jeep
What a wheel spacer does
Fitting a spacer moves the wheel outboard by its thickness. That widens the track, which improves lateral stability, and it creates clearance between the tyre sidewall and the suspension, steering arms and chassis – the usual limit when moving to oversized off-road tyres after a lift.
Fitting and safety
Spacers must be fitted to clean, flat hub faces and the nuts torqued to the vehicle manufacturer’s specification, then re-checked after the first 50-100 km. The centring ring locates the wheel on the hub so the load is carried by the hub face rather than the studs. Fitting by a specialist 4×4 workshop is strongly recommended.
The price shown is for one piece. Order the quantity you need – most builds take four.
| Weight | 1,5 kg |
|---|---|
| Dimensions | 12,7 × 12,7 × 5 cm |
| Brand | OFM4X4 |
| Vehicle Compatibility | Jeep |
| Material | Aluminium |
| Spacer Model | OFM120 |
| Centring Ring | Yes |
| Spacer Thickness | 50 mm |
| Thread Size | 1/2 inch |
| Centre Bore (CB) | 71.6 mm |
| Bolt Pattern (PCD) | 5 x 127 |
