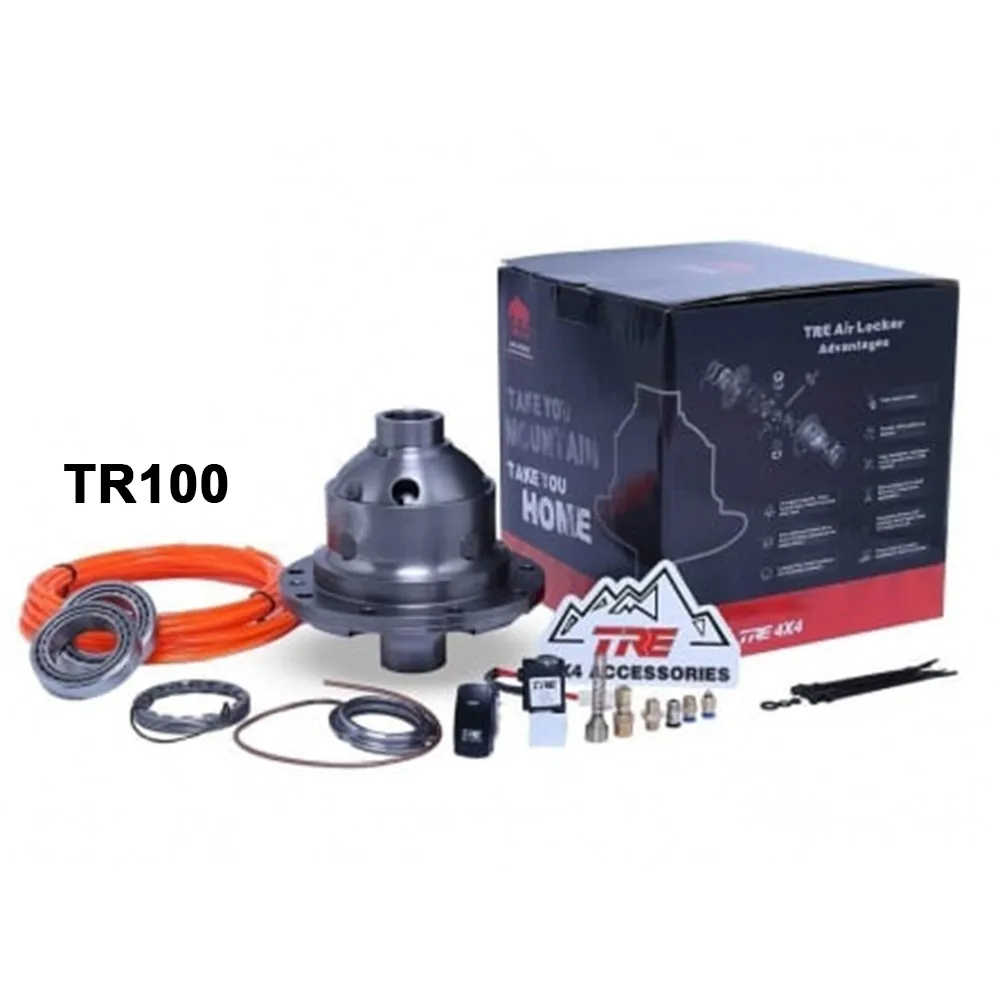

TRE 4×4 TR100 Air Locking Differential – Rear axle, 27 Spline – Jeep
525,00 €
Selectable air-operated locking differential, TRE 4×4 TR100, rear axle. Locks both wheels together on demand for 100% traction, then returns to a fully open diff for normal driving.
- Actuation: Air (TRE 12V compressor required)
- Splines: 27
- Axle: Dana 30, 27
- Fits: Jeep
- Warranty: 12 months
Out of stock
TRE 4×4 TR100 air locking differential – rear axle
An open differential sends torque to the wheel with the least traction, which is why a single lifted wheel can stop a 4×4 completely. The TRE 4×4 TR100 air locker eliminates that: engage it on demand for 100% traction, disengage it and normal on-road manners return.
Technical specification
- Model: TRE 4×4 TR100
- Actuation: Pneumatic (air), switch operated
- Splines: 27
- Axle: Dana 30, 27
- Gear ratios: 3.73 – 5.38
- Fitting position: Rear axle
- Vehicle make: Jeep
- Warranty: 12 months
- Weight: 14 kg
Vehicle application
- 2007-2018 Wrangler JK-JK (Front Axle)
- 1971 – 1986 Wrangler CJ (Front Axle)
- 2008 – 2012 Liberty-Cherokee KK (Front Axle)
- 2002 – 2007 Liberty-Cherokee KJ (Front Axle)
- 1993 – 1998 Grand Cherokee ZJ-ZG (Front Axle)
- 1999 – 2004 Grand Cherokee WJ-WG (Front Axle)
- 1984 – 2001 Cherokee XJ (Front Axle)
- 1996 – 2006 Wrangler TJ-LJ
Check the TRE 4×4 locking differential catalogue and your axle type before ordering – fitment depends on spline count and crown wheel ratio, not model name alone.
Key benefits
- 100% traction on demand: both wheels driven at the same speed when locked
- Fully open when off: no effect on steering, tyre wear or road manners
- Fast engagement: air actuation locks quickly and repeatably
- Built to last: manufactured from high-grade materials for heavy off-road loads
- Proven design: TRE 4×4 lockers are in use in over 80 countries
- Front and rear options available across most 4WD and 2WD axles
What else you need
This locker is air actuated and requires the TRE 4×4 12V air compressor to operate. The same compressor can also be used to re-inflate tyres after airing down.
Installation
Fitting a locking differential means removing and re-shimming the differential, so it must be carried out by a specialist 4×4 workshop. Incorrect setup will damage the crown wheel and pinion. Supplied with a 12-month warranty.
| Weight | 14 kg |
|---|---|
| Brand | TRE 4×4 |
| Vehicle Compatibility | Jeep |
| Product Type | Locking Differential |
| Locker Type | Air (Pneumatic) |
