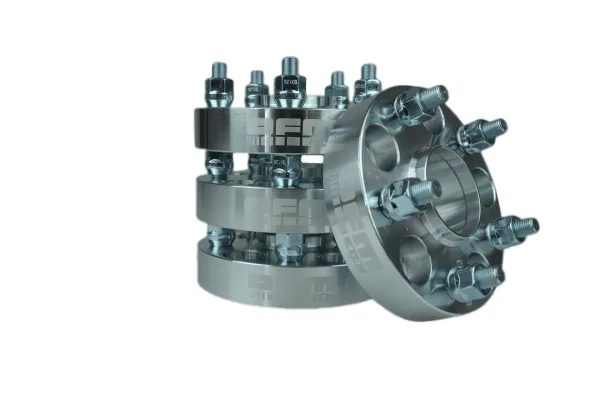

Wheel Spacer 30mm 5×114.3 M12x1.5 CB67.1 with Centring Ring – Jeep Patriot, Mitsubishi Outlander, Pinin
24,00 €
30mm duralumin wheel spacer, 5×114.3 bolt pattern, M12x1.5 thread and 67.1 mm centre bore, with centring ring. Widens the track and clears oversized off-road tyres.
- Thickness: 30mm
- PCD / CB: 5×114.3 / 67.1 mm
- Thread: M12x1.5
- Fits: Jeep Patriot, Mitsubishi Outlander, Pinin
Price is per single piece.
Only 1 left in stock
Size and packaging guidelines
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
Wheel spacer 30mm 5×114.3 M12x1.5
These 30mm wheel spacers push each wheel further out from the hub, widening the track for a more stable stance and clearing larger tyres, lifted suspension and bigger brake components. Machined from aircraft-grade duralumin to keep unsprung weight down.
Technical specification
- Thickness: 30mm
- Bolt pattern (PCD): 5×114.3 mm
- Thread: M12x1.5
- Centre bore (CB): 67.1 mm
- Centring ring: Yes – included
- Material: Duralumin (aluminium alloy)
- Model: OFM 093
- Weight: 1.5 kg
- Supplied: Price is per single piece
Vehicle compatibility
Suits Jeep Patriot, Mitsubishi Outlander, Pinin. Check your hub bolt pattern, thread and centre bore before ordering.
What a wheel spacer does
Fitting a spacer moves the wheel outboard by its thickness. That widens the track, which improves lateral stability, and it creates clearance between the tyre sidewall and the suspension, steering arms and chassis – the usual limit when moving to oversized off-road tyres after a lift.
Fitting and safety
Spacers must be fitted to clean, flat hub faces and the nuts torqued to the vehicle manufacturer’s specification, then re-checked after the first 50-100 km. The centring ring locates the wheel on the hub so the load is carried by the hub face rather than the studs. Fitting by a specialist 4×4 workshop is strongly recommended.
The price shown is for one piece. Order the quantity you need – most builds take four.
| Weight | 1,5 kg |
|---|---|
| Dimensions | 11,4 × 11,4 × 3 cm |
| Brand | OFM4X4 |
| Vehicle Compatibility | Jeep Patriot, Mitsubishi Outlander, Mitsubishi Pinin |
| Material | Aluminium |
| Spacer Model | OFM093 |
| Centring Ring | Yes |
| Spacer Thickness | 30 mm |
| Thread Size | M12 x 1.5 |
| Centre Bore (CB) | 67.1 mm |
| Bolt Pattern (PCD) | 5 x 114.3 |
