Snorkel for Mitsubishi Pajero II V31 (1990-2003) – LLDPE Raised Air Intake

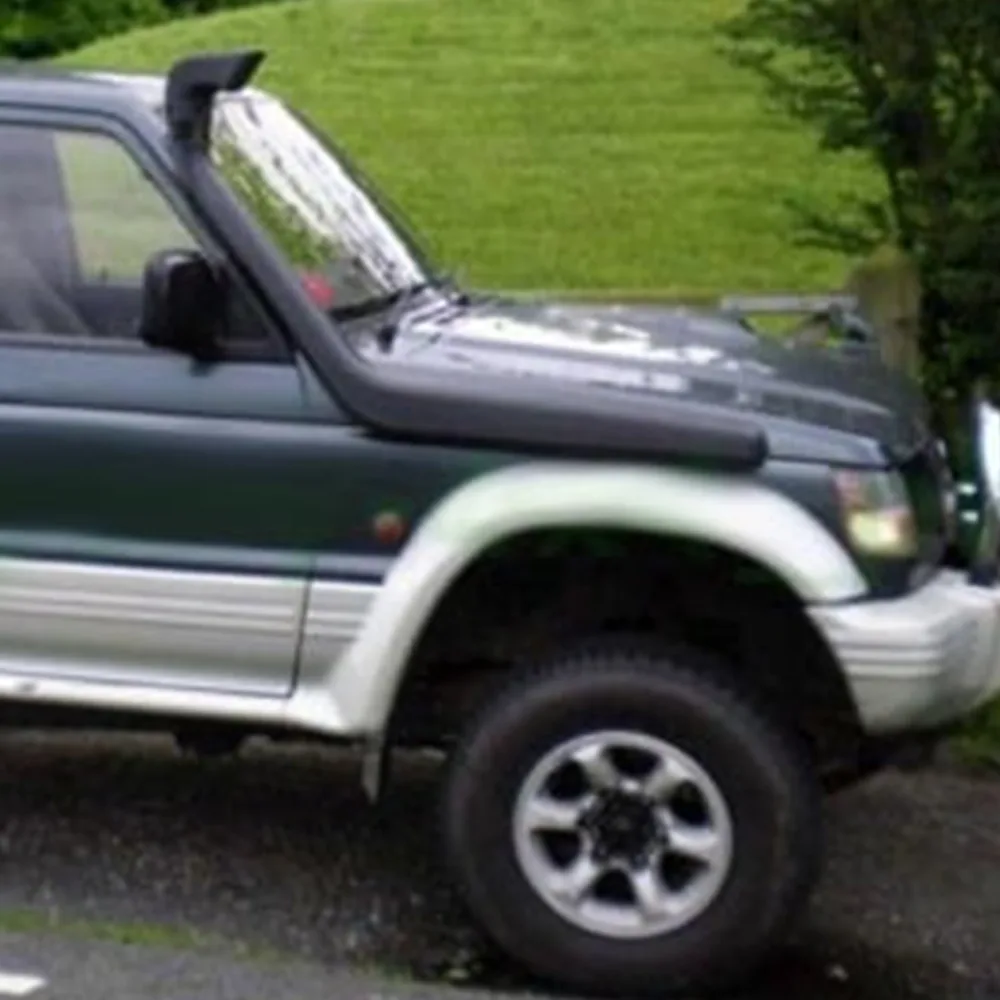

Snorkel for Mitsubishi Pajero II V31 (1990-2003)

Designed specifically for the Mitsubishi Pajero II V31 (1990-2003), this raised air intake takes engine air from above the windscreen line instead of the engine bay. Cooler, cleaner air means longer filter life and better protection in dust and water.

Technical specification

• Vehicle: Mitsubishi Pajero II V31 (1990-2003)
• Make: Mitsubishi
• Model: Pajero II V31
• Production years: 1990-2003
• Fitting side: Right-hand side
• Material: LLDPE (linear low-density polyethylene)
• Finish: Textured black, UV stabilised
• Condition: Supplied ready for fitting
• Weight: 5 kg

Why fit a snorkel

• Cleaner air: roof-level air carries a fraction of the dust found at bumper height, which extends air filter and engine life
• Water crossings: raises the intake well above the standard height, greatly reducing the risk of drawing water into the engine
• Cooler intake charge: air taken from outside the engine bay is cooler and denser than under-bonnet air
• Tough material: LLDPE flexes on impact instead of shattering, and is UV stabilised so it will not chalk or crack in sunlight
• Vehicle-specific: moulded for this model, so it follows the existing panel lines

Installation

Fitting requires cutting and drilling the front wing, so professional installation is strongly recommended. Every joint, the wing aperture and the connection to the airbox must be sealed properly if the vehicle will be used in deep water.

Please note: a snorkel raises the air intake only. Before deep wading you also need to address axle and gearbox breathers, electrical connections and door and floor seals.
